Heat-resistant conveyor belt designed for metallurgy, casting and chemical applications, with belt heat resistance up to 180°C and transported material temperatures reaching 300°C momentarily.
Burning resistant conveyor belts are widely used in metallurgy, casting, chemical processing and other industries involving high-temperature material transportation.
The conveyor belt is designed for operating temperatures up to 180°C, while the temperature of the transported material may reach 300°C momentarily.
The belt carcass uses special heat-resistant fabric to help reduce deformation under elevated temperatures.
The cover rubber uses a specialized formulation that forms an insulating carbonized layer on the surface when conveying high-temperature materials.
A high-adhesion rubber formulation helps maintain strong bonding between belt layers under high-temperature conditions, reducing the risk of delamination and blistering during operation.
The belt offers good stability and is designed for extended service life in demanding thermal environments.
HG/T 4732 — Heat-resistant conveyor belt.
Special heat-resistant fabric is used in the belt carcass to help reduce deformation under high-temperature operating conditions.
The cover rubber is formulated to form an insulating carbonized layer when conveying high-temperature materials.
A high-adhesion rubber formulation helps maintain strong bonding between layers under elevated temperatures.
Designed to reduce delamination and blistering while supporting stable operation and extended service life.
Confirm the operating temperature, material temperature and conveying conditions to select the appropriate heat-resistant belt construction.

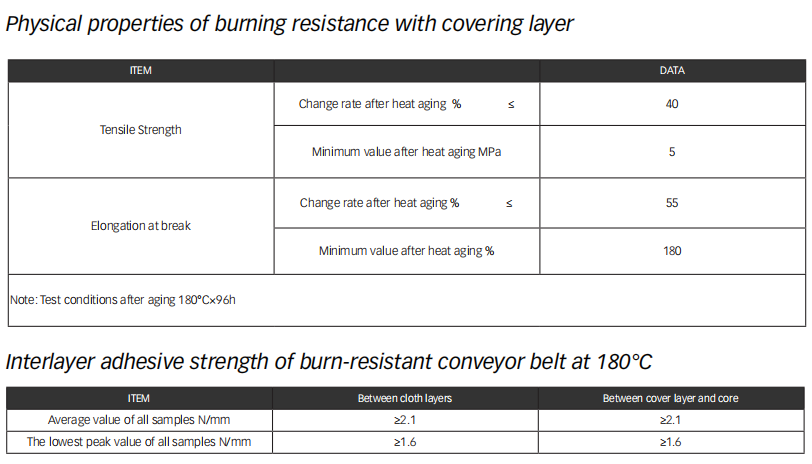

| Specification | Product Data |
|---|---|
| Application | Metallurgy Casting Chemical Industry |
| Performance | Heat Resistant High Temperature Resistant High Adhesion Delamination Resistant Blister Resistant |
| Belt Temperature Resistance | Up to 180°C |
| Material Temperature | Up to 300°C momentarily |
| Standard | HG/T 4732 |
Suitable for high-temperature material conveying in metallurgical production environments.
Designed for conveying hot materials where elevated temperatures place additional demands on the belt structure.
Applicable to chemical production environments requiring stable conveyor performance under high-temperature conditions.
Suitable where transported materials may reach temperatures significantly above normal conveyor operating conditions.
Provide the normal and maximum temperature of the conveyed material.
Confirm the expected continuous operating temperature around the conveyor belt.
Provide conveyor capacity, belt speed, operating schedule and loading conditions.
Confirm whether HG/T 4732 or another applicable heat-resistant conveyor belt standard is required.
Send us your operating conditions and requirements for a product-specific discussion.
